Cover Trimming Adjustment

Adjust the trimming width of the right-hand cover paper determined by Perfect Binder PB-503.

Objects of Adjustment: Perfect Binder Tray, Except PB Tray

NOTICE

  • Make this adjustment after completing Perfect Binder Adjustment - Cover Lead Edge Adj..

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

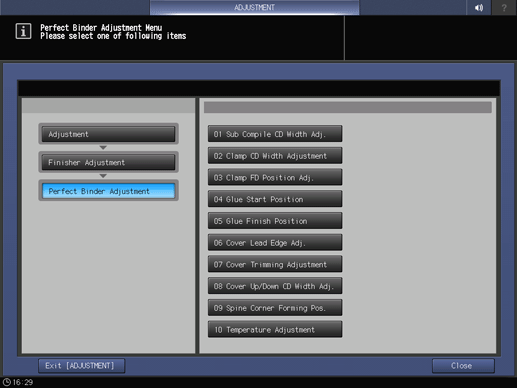

  2. Press Finisher Adjustment, Perfect Binder Adjustment, and Cover Trimming Adjustment in sequence.

  3. Load cover paper in either Perfect Binder Cover Tray or any other tray.

  4. Load paper for body sets in the desired tray.

  5. Select either Perfect Binder Tray or Except PB Tray for the tray loaded with covers.

  6. Press Print Mode.

  7. Select the tray loaded with paper for body sets.

  8. Press Start on the control panel.

    A sample pattern of perfect-bound book is printed.

  9. Check that the edge of the right cover paper is neatly aligned with that of the left cover paper.

    (1) Left cover (2) Right cover (3) Trimming position

  10. If any adjustment is required, press Exit PrintMode to return to the Cover Trimming Adjustment screen.

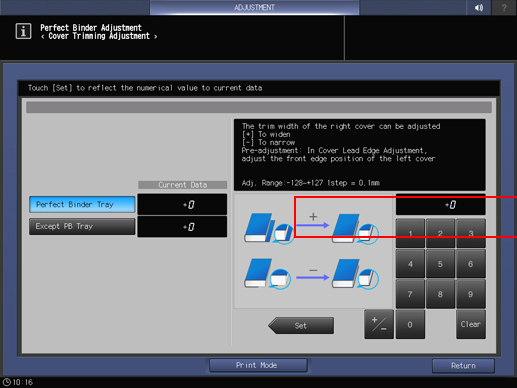

  11. Use the touch panel keypad to enter the set value.

    Adj. Range: -128~+127 1 step = 0.1 mm

    [-] To narrow [+] To widen

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

  12. Repeat steps 6 to 11 until the desired result is obtained.

  13. Press Return.

    The screen returns to the Perfect Binder Adjustment Menu screen.
