Staple Paper Width Adj.

Adjust the width of the exit guides of Saddle Stitcher SD-506 to be used in Staple mode to reduce misalignment and skew in paper.

Objects of Adjustment: Offset for All Size, SRA3 short edge feed, A3 short edge feed, B4 short edge feed, SRA4 short edge feed, A4 short edge feed, B5 short edge feed, 12  18 short edge feed, 11 17 short edge feed, 8.5 14 short edge feed, 8.5 11 short edge feed, 8 13 short edge feed, 8K short edge feed, 16K short edge feed, Custom(380~463 mm), Custom(257~379 mm)

NOTICE

  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

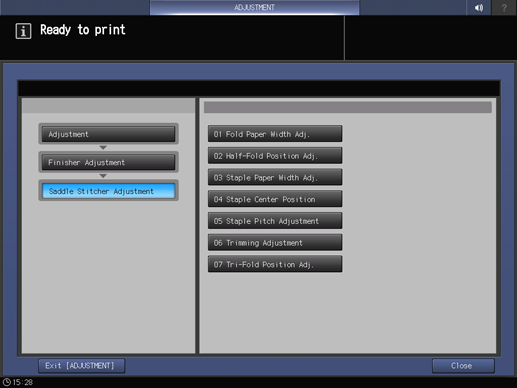

  2. Press Finisher Adjustment, Saddle Stitcher Adjustment, and Staple Paper Width Adj. in sequence.

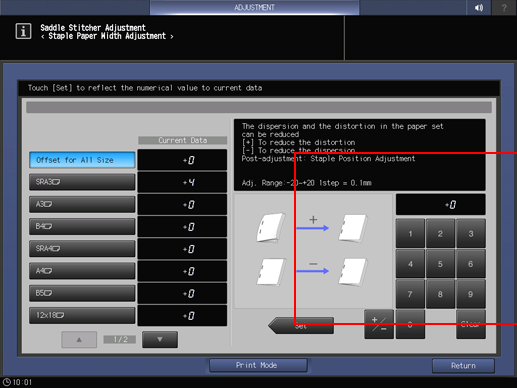

  3. Select the size to be adjusted using down or up.

  4. Press Print Mode.

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

    NOTICE

    • Without the saddle stitcher tray withdrawn, the machine does not start printing even if Start on the control panel is pressed. Be sure to withdraw the saddle stitcher tray.

  7. Check if the stapled set shows misalignment (a) (caused if specified paper width is larger than the actual width), or is curved (b) (caused if specified paper width is smaller than the actual width).

    Allowance: a = 1 mm or less

  8. If any adjustment is required, press Exit PrintMode to return to the Staple Paper Width Adjustment screen.

  9. Use the touch panel keypad to enter the set value.

    Adj. Range: -20~+20 1 step = 0.1 mm

    [-] To reduce the dispersion [+] To reduce the distortion

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

    • supplementary explanationStaple Paper Width Adjustment is subject to the following conditions depending on the actual paper width. If you enter a numeric value so that the staple pitch is 91 mm or less in the paper size such as A4 short edge feed of which the paper width is less than 222 mm, the staple pitch is automatically set to 91 mm.

    Actual paper width

    Minimum value

    Maximum value

    Less than 222 mm

    91 mm

    Actual width minus 91 mm

    222 mm to 290 mm

    Not limited

    Not limited

    More than 290 mm

    Not limited

    165 mm

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press Return.

    The screen returns to the Saddle Stitcher Adjustment Menu screen.
