Half-Fold Position Adj.

Adjust the length of the top face to determine the Half-Fold position of Folding Unit FD-503.

Objects of Adjustment: Offset for All Size, A3 short edge feed, B4 short edge feed, SRA4 short edge feed, A4 short edge feed, 12 18 short edge feed, 11 17 short edge feed, 8.5 14 short edge feed, 8.5 11 short edge feed, 8K short edge feed, Custom(380~458 mm), Custom(279~379 mm)

NOTICE

  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

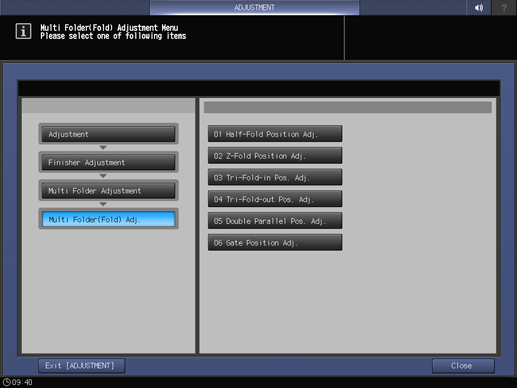

  2. Press Finisher Adjustment, Multi Folder Adjustment, Multi Folder(Fold) Adj., and Half-Fold Position Adj. in sequence.

  3. Select the size to be adjusted using down or up.

  4. Press Print Mode.

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Check the misalignment (a) of the edges of printed paper.

    Allowance: a = 0 mm ± 1.5 mm

  8. If any adjustment is required, press Exit PrintMode to return to the Half-Fold Position Adjustment screen.

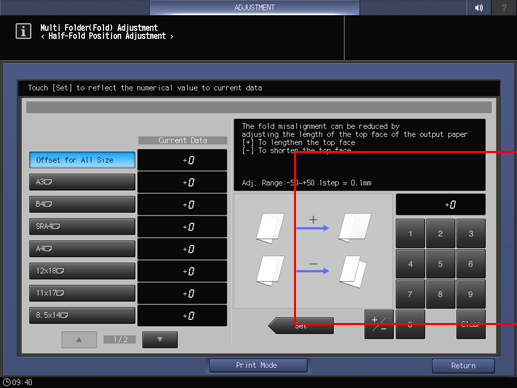

  9. Use the touch panel keypad to enter the set value.

    Adj. Range: -50~+50 1 step = 0.1 mm

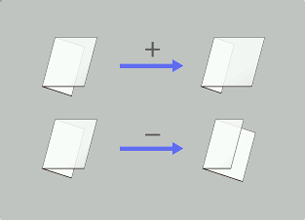

    [-] To shorten the top face [+] To lengthen the top face

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press Return.

    The screen returns to the Multi Folder(Fold) Adjustment Menu screen.
