Fold&Staple Staple Position

Adjust half-fold position and staple position in Saddle Stitcher SD-510 mounted on Finisher FS-532.

Objects of Adjustment:
Offset for All Size, SRA3 short edge feed, 12  18 short edge feed, A3 short edge feed, 11  17 short edge feed, 8K short edge feed, B4 short edge feed, SRA4 short edge feed, 8.5  14 short edge feed, 8.5  11 short edge feed, B5 short edge feed, A4 short edge feed, 16K short edge feed, 8  13 short edge feed, 13  19 short edge feed, Custom(380~488 mm), Custom(240~379 mm)

NOTICE

  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

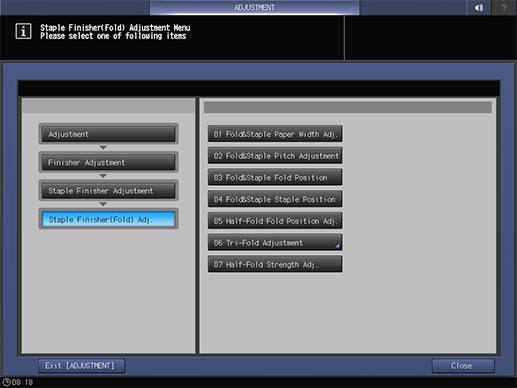

  2. Press Finisher Adjustment, Staple Finisher Adjustment, Staple Finisher(Fold) Adj., and Fold&Staple Staple Position in sequence.

  3. Select the size to be adjusted using down or up.

  4. Press Print Mode.

  5. Load the paper size selected in step 3, then select that tray key.

    • supplementary explanationFor Output Setting, Fold & Staple is automatically selected.

  6. Press Start on the control panel.

    A folded and stapled sample pattern are printed.

  7. Measure the difference (a) between the half-fold position and staples.

    Allowance: a = ± 1 mm

  8. Press Exit PrintMode to return to the Fold&Staple Staple Position Adjustment screen.

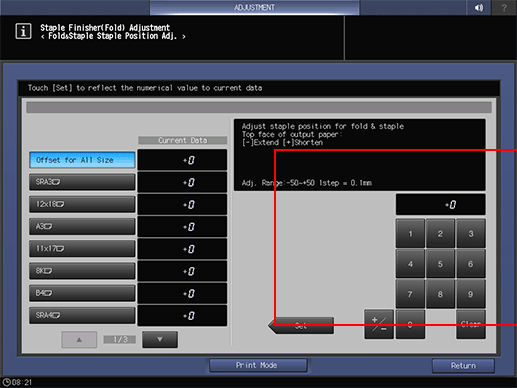

  9. If any adjustment is required, use the touch panel keypad to enter the set value.

    Adj. Range: -50~+50 1 step = 0.1 mm

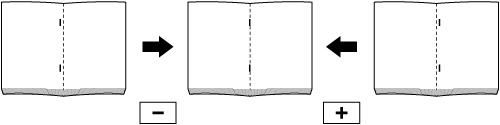

    Top face of output paper: [-] Extend [+] Shorten

    • supplementary explanationPress +/- to specify the value to be positive or negative.

  10. Press Set to change the setting with the Current Data.

  11. Repeat steps 4 to 10 until the desired result is obtained.

  12. Press Return.

    The screen returns to the Staple Finisher(Fold) Adjustment Menu screen.
