Drum Memory Recovery Mode

Perform drum pre-rotation for 3 minutes. Perform this adjustment when stripe-shaped uneven density is detected on a half-tone image.

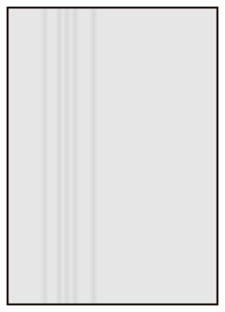

Example of image failure

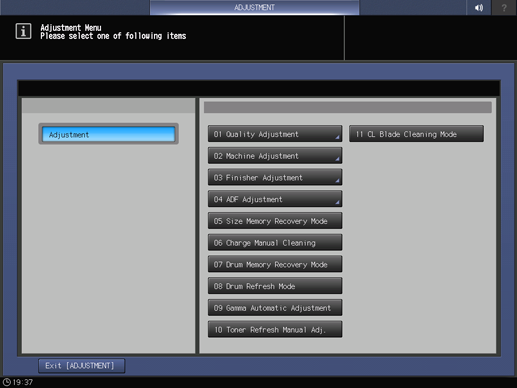

Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

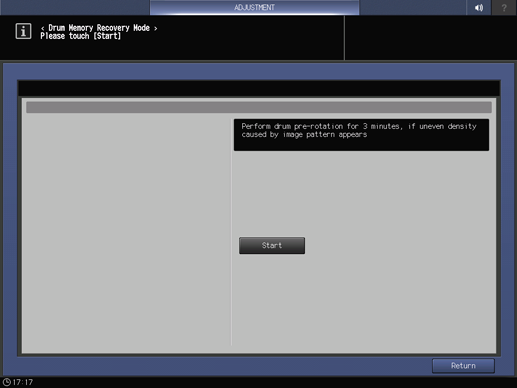

Press Drum Memory Recovery Mode.
Press Start.
Press Return.
The screen returns to the Adjustment Menu screen.
