Flattening a Fold (Strength)

Adjust the strength when forming the booklet spine using Folding Unit FD-504 mounted in Saddle Stitcher SD-513.

NOTICE

  • This function allows you to adjust the reference value of the strength (Strong+ / Strong / Normal / Weak / Weak+) for spine corner forming on the COPY screen or in the printer driver.
    For example, if the strength is set to the Strong direction in this adjustment, the reference value of the spine corner forming strength totally shifts to the Strong direction. If the strength specified on the COPY screen or using the printer driver is insufficient, you can specify a stronger strength in this adjustment, but be careful that the reference value shifts totally.
    For example, if the strength is set to the Weak direction in this adjustment, the reference value of the spine corner forming strength totally shifts to the Weak direction.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

  2. Press Finisher Adjustment, Saddle Stitcher Adjustment, and Flattening a Fold (Strength) in sequence.

  3. Press Print Mode.

  4. Load A3 short edge feed or 11 17 short edge feed paper in any tray, and select the button of the tray.

  5. Press Start on the control panel.

    A sample pattern will be output.

  6. Check the spine of the output booklet.

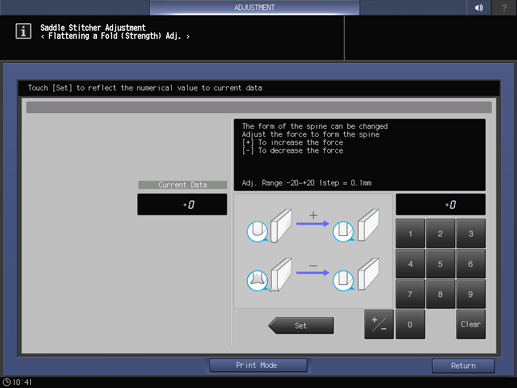

  7. Press Exit PrintMode to return to the Flattening a Fold (Strength) Adj. screen.

  8. If any adjustment is required, use the touch panel keypad to enter the set value.

    Adj. Range: -20~+20 1 step = 0.1 mm

    [-] To decrease the force [+] To increase the force

    • supplementary explanationUse +/- to specify the value to be positive or negative.

  9. Press Set to change the Current Value.

  10. Repeat steps 3 to 9 until the desired result is obtained.

  11. Press Return.

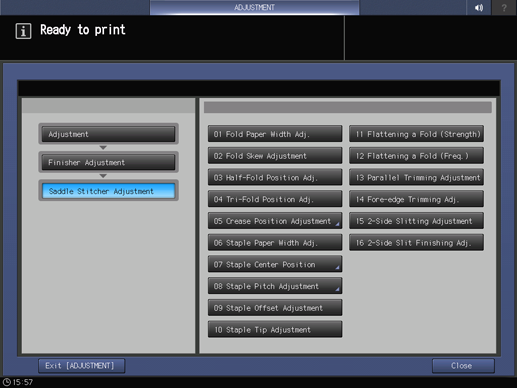

    The screen returns to the Saddle Stitcher Adjustment Menu screen.
