Z-Fold Position Adj.
Adjust the fold positions for Z-folding of Folding Unit FD-503.
Objects of Adjustment: Offset for All Size, A3 short edge feed, B4 short edge feed, SRA4 short edge feed, A4 short edge feed, 12 18 short edge feed, 11 17 short edge feed, 8.5 14 short edge feed, 8.5 11 short edge feed, 8K short edge feed, Custom(380~458 mm), Custom(279~379 mm)
NOTICE
When adjusting both Fold 1 and Fold 2, be sure to start with the Fold 1 adjustment.
NOTICE
If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.
Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

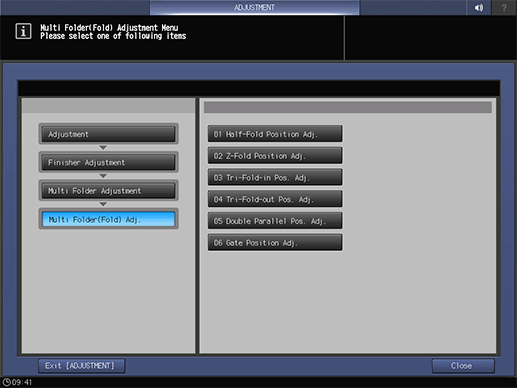

Press Finisher Adjustment, Multi Folder Adjustment, Multi Folder(Fold) Adj., and Z-Fold Position Adj. in sequence.
Select the size to be adjusted using down or up.
Press Print Mode.
Load the paper with the size to be adjusted, then select that tray.
Press Start on the control panel.
A sample pattern will be output.

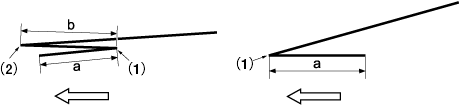

Measure the lengths (a) and (b) of the printed paper.
Allowance: a ± 1.5 mm, b ± 1.5 mm
Paper Size
a
b
A3 short edge feed
105.5 mm
108.5 mm
B4 short edge feed
91.5 mm
94.5 mm
SRA4 short edge feed
80.5 mm
83.5 mm
A4 short edge feed
74.8 mm
77.8 mm
12 18 short edge feed
114.8 mm
117.8 mm
11 17 short edge feed
108.5 mm
111.5 mm
8.5 14 short edge feed
94.0 mm
-
8.5 11 short edge feed
70.4 mm
73.4 mm
8K short edge feed
98.0 mm
101.0 mm
(1) Fold 1 / (2) Fold 2
If any adjustment is required, press Exit PrintMode to return to the Z-Fold Position Adjustment screen.

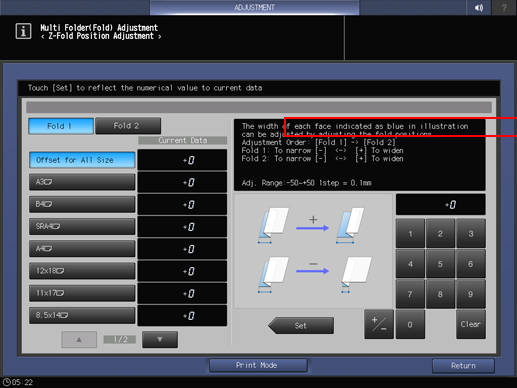

Select Fold 1, and then use the touch panel keypad to enter the set value.
Adj. Range: -50~+50 1 step = 0.1 mm
Fold 1: To narrow [-] <-> [+] To widen
supplementary explanationUse +/- to specify the value to be positive or negative.

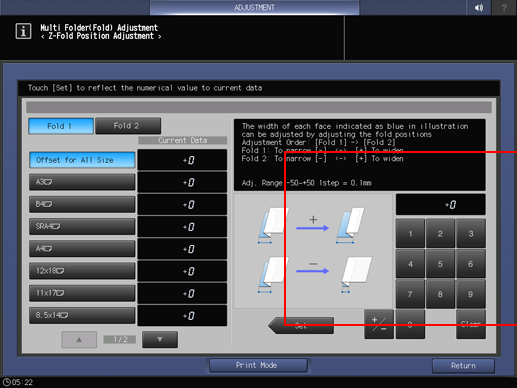

supplementary explanationPress Set to change the Current Value.

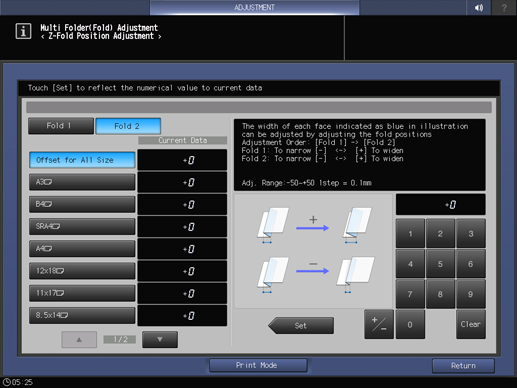

Select Fold 2, and then use the touch panel keypad to enter the set value.
Adj. Range: -50~+50 1 step = 0.1 mm
Fold 2: To narrow [-] <-> [+] To widen
supplementary explanationUse +/- to specify the value to be positive or negative.
supplementary explanationPress Set to change the Current Value.
Repeat steps 4 to 10 until the desired result is obtained.
Press Return.
The screen returns to the Multi Folder(Fold) Adj. Menu screen.
