Glue Finish Position
Adjust the position to finish gluing on the body page and adjust the amount of glue using Perfect Binder PB-503. The sizes referred to in this section are those of bodies corresponding to cover sizes.
Objects of Adjustment:
Ahead, Back: Offset for All Size, A4 long edge feed, B5 long edge feed, A5 long edge feed, 8.5 11 long edge feed, 16K long edge feed, A5 short edge feed, 5.5 8.5 short edge feed, 5.5 8.5 long edge feed, Custom(220~379 mm), Custom(148~219 mm)
NOTICE
If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.
Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.
Press Finisher Adjustment, Perfect Binder Adjustment, and Glue Finish Position in sequence.
Load cover paper in either Perfect Binder Cover Tray or any other tray.
Load paper for body sets in the desired tray.
Select the size to be adjusted using down or up.
Press Print Mode.
Select the tray loaded with paper for body sets.
Press Start on the control panel.
A sample pattern of perfect-bound book is printed.
Check that the glue finishes in proper position on both frontward and backward ends of the body set.
(1) Body set (2) Backward glue finishing position (3) Frontward glue finishing position
If any adjustment is required, press Exit PrintMode to return to the Glue Finish Position Adjustment screen.

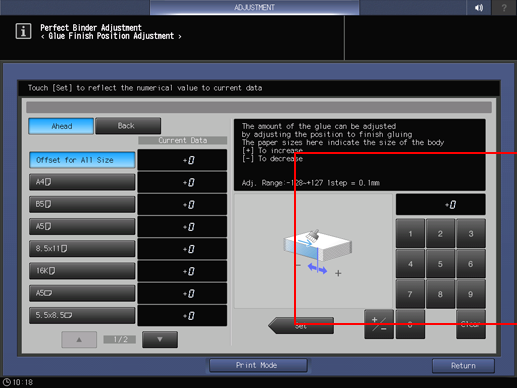

Select either Ahead or Back.
Use the touch panel keypad to enter the set value.
Adj. Range: -128~+127 1 step = 0.1 mm
[-] To decrease [+] To increase
supplementary explanationUse +/- to specify the value to be positive or negative.
supplementary explanationPress Set to change the Current Value.
Repeat steps 6 to 12 until the desired result is obtained.
Press Return.

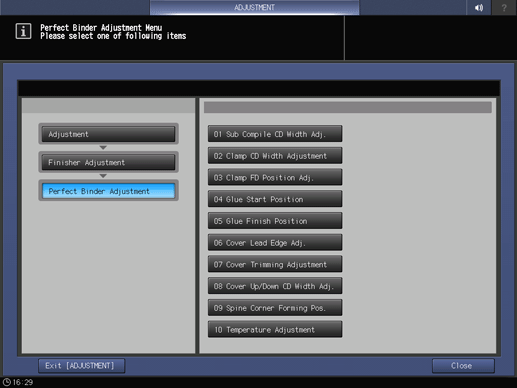

The screen returns to the Perfect Binder Adjustment Menu screen.
