Fold Skew Adjustment

Adjust the insertion of the alignment plate in Saddle Stitcher SD-513. This adjustment is available for each of 1-sheet folding or multi-sheet folding.

Objects of Adjustment: Offset for All Size, SRA3 short edge feed, A3 short edge feed, B4 short edge feed, SRA4 short edge feed, A4 short edge feed, B5 short edge feed, 12 18 short edge feed, 11 17 short edge feed, 8.5 14 short edge feed, 8.5 11 short edge feed, 8 13 short edge feed, 8K short edge feed, 16K short edge feed, PI Paper, Custom(380~488 mm), Custom(257~379 mm), 13 19 short edge feed

NOTICE

  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

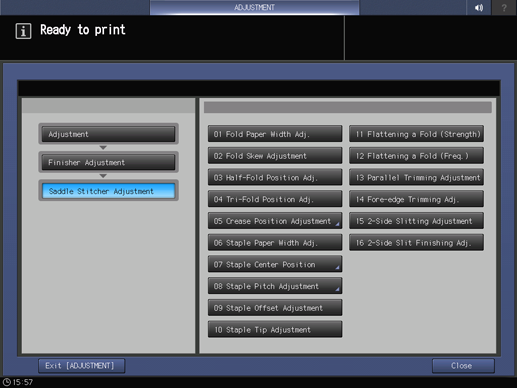

  2. Press Finisher Adjustment, Saddle Stitcher Adjustment, and Fold Skew Adjustment in sequence.

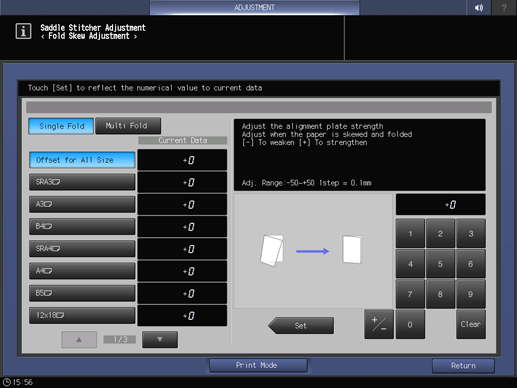

  3. Select Single Fold or Multi Fold, and select the button of the size you want to adjust.

  4. Press Print Mode.

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Check the skew of the folding line.

  8. If any adjustment is required, press Exit PrintMode to return to the Fold Skew Adjustment screen.

  9. Use the touch panel keypad to enter the set value.

    Adj. Range: -50~+50 1 step = 0.1 mm

    [-] To weaken [+] To strengthen

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press Return.

    The screen returns to the Saddle Stitcher Adjustment Menu screen.
