Rewind Paddle Descent Adj.

Adjust rewind paddle descent of the stacker.

Objects of Adjustment: Offset for All Size, SRA3 short edge feed, A3 short edge feed, SRA4 short edge feed, A4 long edge feed, A4 short edge feed, A5 long edge feed, B4 short edge feed, B5 long edge feed, 8K short edge feed, 16K long edge feed, 12  18 short edge feed, 11  17 short edge feed, 9  11 long edge feed, 8.5  11 long edge feed, 8.5  11 short edge feed, 8.5  14 short edge feed, 8  13 short edge feed, 5.5  8.5 long edge feed, 16K short edge feed, Custom(380~488 mm), Custom(220~379 mm), Custom(139~219 mm)

NOTICE

  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

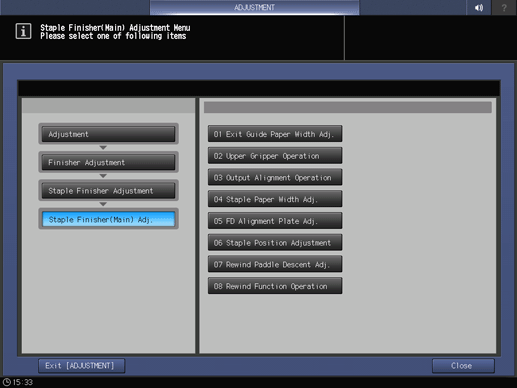

  2. Press Finisher Adjustment, Staple Finisher Adjustment, Staple Finisher(Main) Adj., and Rewind Paddle Descent Adj. in sequence.

  3. Select the size to be adjusted using down or up.

  4. Press Print Mode.

  5. Load the paper size selected in step 3, then select that tray.

    For Output Setting, Staple is automatically selected.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Check the misalignment (a) of the sheets delivered to the primary (main) tray.

    Check the misalignment of the delivered sheets to estimate the adjustment amount.
    Allowance: a = ± 1 mm

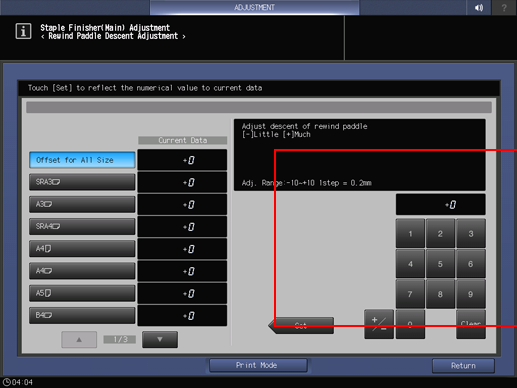

  8. Press Exit PrintMode to return to the Rewind Paddle Descent Adjustment screen.

  9. If any adjustment is required, use the touch panel keypad to enter the set value.

    Adj. Range: -10~+10 1 step = 0.2 mm

    [-] Little [+] Much

    • supplementary explanationUse +/- to specify the value to be positive or negative.

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press Return.

    The screen returns to the Staple Finisher(Main) Adjustment Menu screen.
