Half-Fold Strength Adj.

Adjust the time to depress the booklet folding line using the roller when performing Fold & Staple or Multi Half-Fold using Saddle Stitcher SD-510 mounted in Finisher FS-532. Input value represents the number of second. Making the roller pressure time longer increases strength to fold booklets, yet decreases productivity.

1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

2. Press Finisher Adjustment, Staple Finisher Adjustment, Staple Finisher(Fold) Adj., and Half-Fold Strength Adj. in sequence.

3. Press Print Mode.

4. Load the desired paper into a tray, then select that tray.

   • supplementary explanationFor Output Setting, Fold & Staple is automatically selected.

5. Press Start on the control panel.

   A sample pattern will be output.

6. Check if the strength in fold of printed paper is too weak.

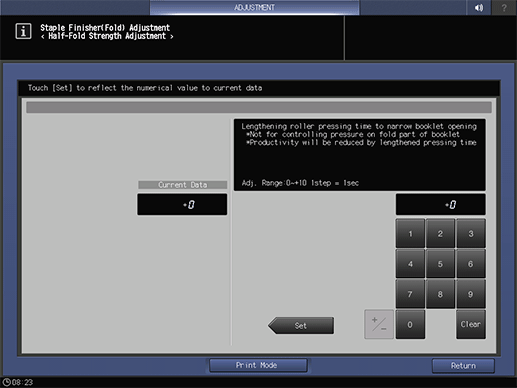

7. Press Exit PrintMode to return to the Half-Fold Strength Adjustment screen.

8. If any adjustment is required, use the touch panel keypad to enter the set value.

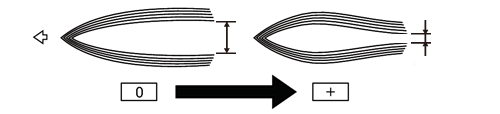

   Adj. Range: 0~+10 1 step = 1 sec.

   • supplementary explanationAdjust the addition time.



9. Press Set to change the setting with the Current Data.

10. Repeat steps 3 to 9 until the desired result is obtained.

11. Press Return.

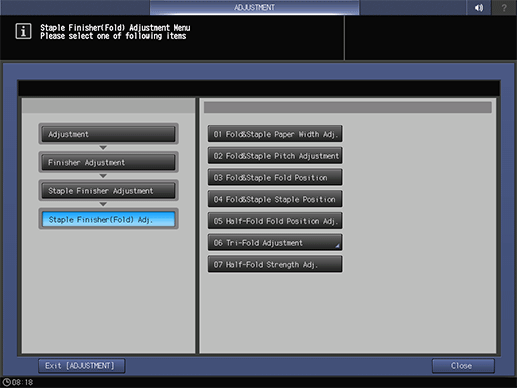

    The screen returns to the Staple Finisher(Fold) Adjustment Menu screen.
