Drum Refresh Mode

Rotate drum for 3 minutes to refresh surface. Perform this operation if halftone images have blur under high humidity.

Example of image failure

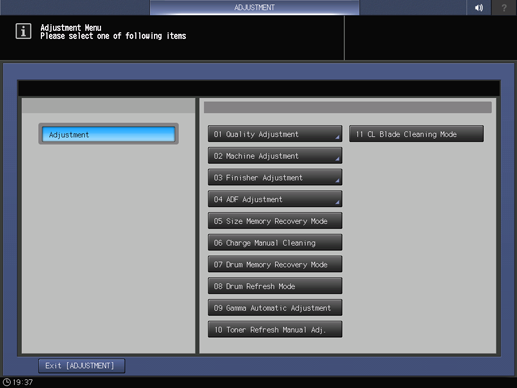

Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

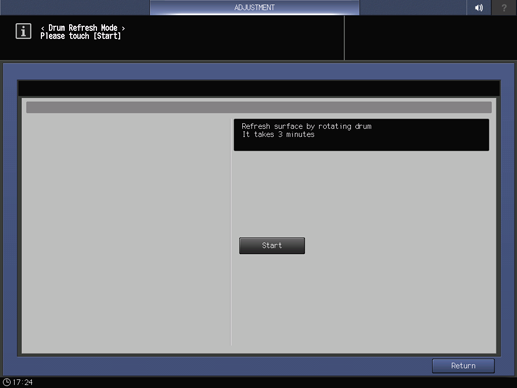

Press Drum Refresh Mode.
Press Start.
Press Return.
The screen returns to the Adjustment Menu screen.
