Sub Compile CD Width Adj.

Adjust misalignment or distortion in the crosswise direction of the body if such an error is detected when performing binding using Perfect Binder PB-503. The sizes referred to in this section are those of bodies corresponding to cover sizes.

Objects of Adjustment: Offset for All Size, A4 long edge feed, B5 long edge feed, A5 long edge feed, 8.5 11 long edge feed, 16K long edge feed, A5 short edge feed, 5.5 8.5 short edge feed, 5.5 8.5 long edge feed, Custom(220~379 mm), Custom(148~219 mm)

NOTICE

  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

  2. Press Finisher Adjustment, Perfect Binder Adjustment, and Sub Compile CD Width Adj. in sequence.

  3. Load cover paper in either Perfect Binder Cover Tray or any other tray.

  4. Load paper for body sets in the desired tray.

  5. Select the size to be adjusted using down or up.

  6. Press Print Mode.

  7. Select the tray loaded with paper for body sets.

  8. Press Start on the control panel.

    A sample pattern of perfect-bound book is printed.

  9. Check that the horizontal scanning direction is equal on every page of the body set.

  10. If any adjustment is required, press Exit PrintMode to return to the Sub Compile CD Width Adjustment screen.

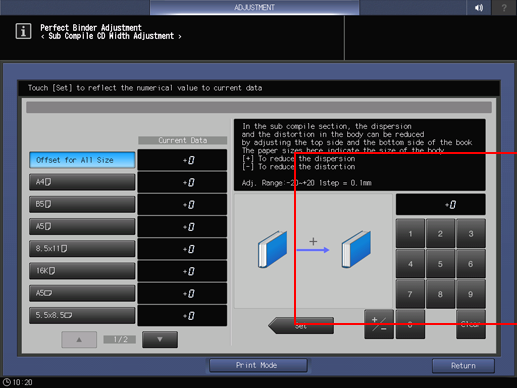

  11. Use the touch panel keypad to enter the set value.

    Adj. Range: -20~+20 1 step = 0.1 mm

    [-] To reduce the distortion [+] To reduce the dispersion

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

  12. Repeat steps 6 to 11 until the desired result is obtained.

  13. Press Return.

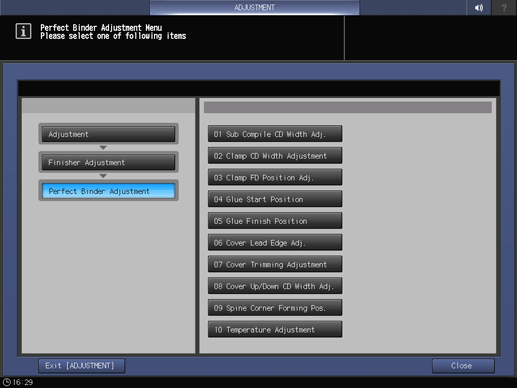

    The screen returns to the Perfect Binder Adjustment Menu screen.
