Tri-Fold Position Adj.

Adjust the tri-fold positions of Saddle Stitcher SD-513.

Objects of Adjustment: Offset for All Size, A4 short edge feed, 8.5 11 short edge feed

NOTICE

  • When adjusting both Fold 1 and Fold 2, be sure to start with the Fold 1 adjustment. To position Fold 1 and Fold 2, use the paper edge as the standard position. Consequently, the measurement (b) in step 7 is subject to the change in either position of Fold 1 and Fold 2.

NOTICE

  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  • The maximum adjustment value of A4 short edge feed of Fold 1 is "+90".
    The maximum adjustment value of 8.5  11 short edge feed of Fold 1 is "+30".

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

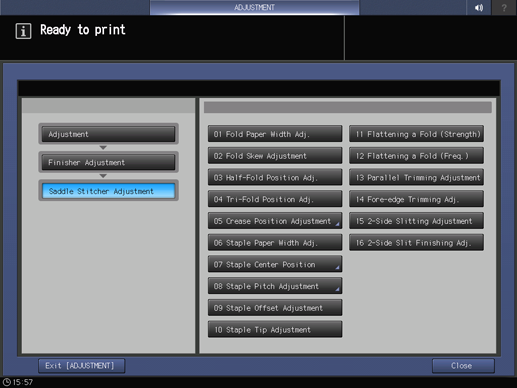

  2. Press Finisher Adjustment, Saddle Stitcher Adjustment, and Tri-Fold Position Adj. in sequence.

  3. Select the size to be adjusted.

  4. Press Print Mode.

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Measure the lengths (a) and (b) of the printed paper.

    Allowance: a ± 1.5 mm, b ± 1.5 mm

    Paper Size

    a

    b

    A4 short edge feed

    97.5 mm ± 1.5 mm

    102.0 mm ± 3.0 mm

    8.5 11 short edge feed

    91.6 mm ± 1.5 mm

    96.1 mm ± 3.0 mm

    (1) Fold 1 / (2) Fold 2

  8. If any adjustment is required, press Exit PrintMode to return to the Tri-Fold-Position Adjustment screen.

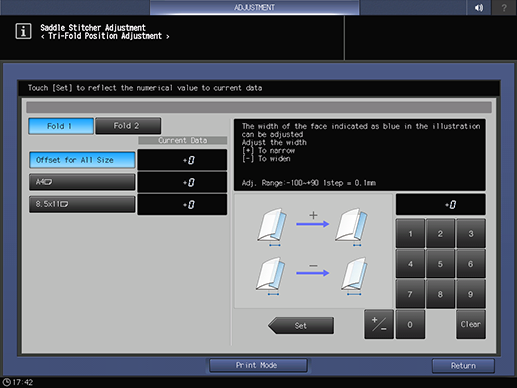

  9. Select Fold 1, and then use the touch panel keypad to enter the set value.

    Adj. Range: -100~+90 1 step = 0.1 mm

    [-] To widen [+] To narrow

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

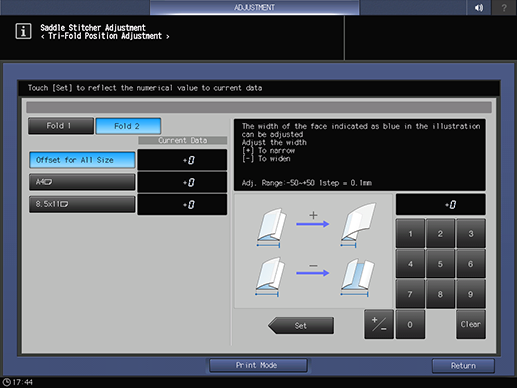

  10. Select Fold 2, and then use the touch panel keypad to enter the set value.

    Adj. Range: -50~+50 1 step = 0.1 mm

    [-] To widen [+] To narrow

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

  11. Repeat steps 4 to 10 until the desired result is obtained.

  12. Press Return.

    The screen returns to the Saddle Stitcher Adjustment Menu screen.
