Individually changing the horizontal and vertical magnification ratios

Specify any value for each of the horizontal and vertical magnification ratios, and make a copy of which the proportion of height and width is different.

For Vertical Zoom and Horizontal Zoom, individually specify the magnification ratio within the range from 0.250 to 4.000 in 0.001 (0.1%) increments.

Tips

A service setting is required to use this function. For details, contact your service representative.

Press the COPY tab to display the COPY screen.
Press Zoom.

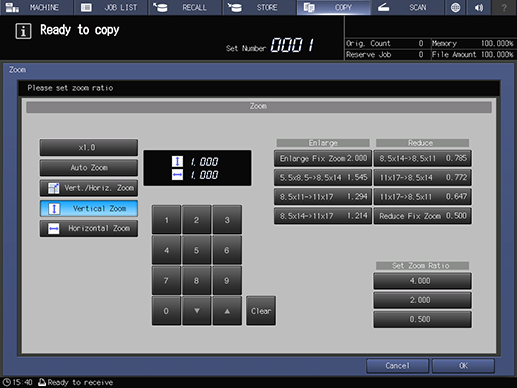

The Zoom screen is displayed.
Specify the desired magnification ratio.
Select Vertical Zoom or Horizontal Zoom, then use the touch panel keypad or downup to enter the desired magnification ratio.
- supplementary explanationIf wrong number is entered, continue by entering the correct number from the beginning.
- supplementary explanationKeep pressing down or up to change the ratio in 0.001 (0.1%) steps at first, and then in 0.010 (1%) steps.
Press OK.
The screen returns to the COPY screen.

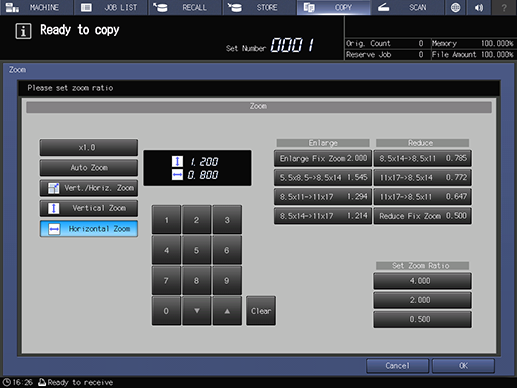

The horizontal and vertical magnification ratios are displayed under Zoom.
