Emptying Scrap Box

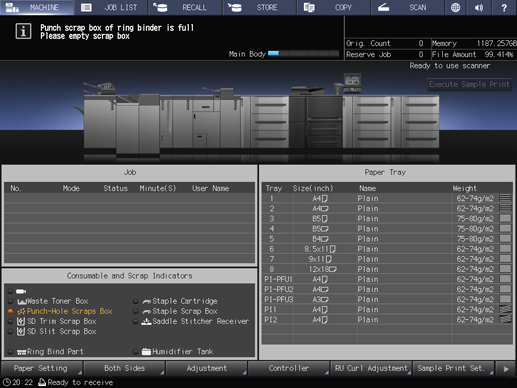

When the scrap box of Auto Ring Binder GP-502 becomes full, the following message will appear in the message area of the screen.
Punch scrap box of ring binder is full / Please empty scrap box
Also, the Punch-Hole Scraps Box indicator in the Consumable and Scrap Indicators area of the MACHINE screen lights up red, and the text color changes to yellow.
The display panel of the ring binder shows the ALERT-Supplies/Trays screen with the message Empty ChipTray displayed.
Follow the procedure below to empty the scrap box of the ring binder.
Please also refer to OPERATION MANUAL supplied with Auto Ring Binder GP-502 for the information on how to empty the scrap box.
NOTICE
Once withdrawing the scrap box from the ring binder, be sure to empty it.
Press the Punch-Hole Scraps Box indicator in the Consumable and Scrap Indicators area of the MACHINE screen.
Perform the process while pressing updown to follow the steps.
Reference
For how to display the help message, refer to Displaying Help Message.
