Using Functions Manually

Finisher FS-532 mounted with Post Inserter PI-502 can be operated manually with the control panel provided on the post inserter.

Finisher FS-532 provides the following output modes according to the optional configuration.

Output mode

Description

Finisher FS-532 +

Post Inserter PI-502

Corner Staple / 2 Position Staple

Finisher FS-532 +

Post Inserter PI-502 + Punch Kit PK-522

Corner Staple / 2 Position Staple, Punch

Finisher FS-532 + Post Inserter PI-502 + Saddle Stitcher SD-510

Corner Staple / 2 Position Staple, Fold&Staple, Tri-Fold

Button

Output

Staple mode selection button

Fold&Staple

Corner Staple

2 Position Staple

Tri-Fold

Punch button

Function

Paper (Size/Weight)

Number of sheets loaded

Output Tray

Corner Staple / 2 Position Staple

A3 short edge feed, B4 short edge feed, A4 short edge feed/long edge feed, B5 short edge feed/long edge feed, A5 long edge feed, 11 17 short edge feed, 8.5 14 short edge feed, 8.5 11 short edge feed/long edge feed, 5.5 8.5 long edge feed (50 g/m2 to 200 g/m2 / 14 lb Bond to 53 lb Bond)

100 sheets or less (paper length: 139 mm to 399 mm / 5.47" to 15.71")
50 sheets or less (paper length: 400 mm / 15.75" or more)

Primary (main) tray

Punch

A3 short edge feed to A5 long edge feed (50 g/m2 to 200 g/m2 / 14 lb Bond to 53 lb Bond)

200 sheets (80 g/m2 / 21 lb Bond) or paper height of within 30 mm / 1.18"

Primary (main) tray

Fold&Staple

A3 short edge feed, B4 short edge feed, A4 short edge feed, 12 18 short edge feed, 11 17 short edge feed, 8.5 14 short edge feed, 8.5 11 short edge feed (50 g/m2 to 200 g/m2 / 14 lb Bond to 53 lb Bond)
Up to one sheet (200 g/m2 / 53 lb Bond) can be attached as a cover for Fold&Staple.

25 sheets or less (50 g/m2 to 61 g/m2 / 14 lb Bond to 17 lb Bond paper)
20 sheets or less (62 g/m2 to 80 g/m2 / 18 lb Bond to 21 lb Bond paper)
16 sheets or less (81 g/m2 to 91 g/m2 / 22 lb Bond to 24 lb Bond paper)
5 sheets or less (92 g/m2 to 200 g/m2 / 25 lb Bond to 53 lb Bond paper)

Multi folder tray

Tri-Fold

A4 short edge feed, 8.5 11 short edge feed

1 sheet (92 g/m2 to 105 g/m2 / 25 lb Bond to 28 lb Bond), 1 to 3 sheets (50 g/m2 to 91 g/m2 / 14 lb Bond to 24 lb Bond)

Multi folder tray

  • preconditionPaper should be placed only in the lower tray. Upper tray cannot be used.

  1. Place paper in the lower tray of the post inserter.

    • supplementary explanationCorner Staple / 2 Position Staple: Place paper face up.

    • supplementary explanationPunch : Place paper face up.

    • supplementary explanationFold & Staple: Place the face to be front side of the finished set up.

    • supplementary explanationTri-Fold: Place the face to be outside of the fold up.

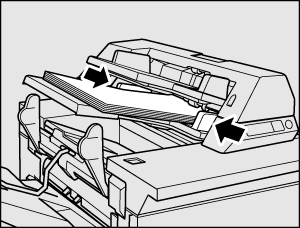

    • supplementary explanationAlign the guide plate with the paper.

    NOTICE

    • Do not punch special paper type such as labels or tracing paper. If you use special paper, unexpected trouble may be caused to the punch kit.

  2. Select the desired mode using the staple mode selection button and punch button.

    • supplementary explanationTo select Corner Staple / 2 Position Staple, Fold & Staple, or Tri-Fold, press the staple mode selection button to turn on the lamp of desired mode. To select Punch, press the punch button to turn on the lamp.

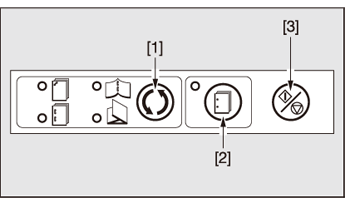

    [1]: Staple mode selection button

    [2]: Punch button

    [3]: Start/Stop button

    • supplementary explanationPunch and Corner Staple / 2 Position Staple are compatible. To use it in combination, press the staple mode selection button to turn on the lamp. If any function other than Punch is not desired, turn off all the lamps except that of Punch.

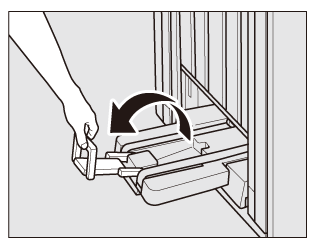

  3. Open the paper delivery handle of the folder tray when Fold & Staple or Multi 3-Fold mode is selected.

  4. Press the Start/Stop button on the control panel of the post inserter.

    • supplementary explanationTo stop the output, press the Start/Stop button again.
