Using Functions Manually

Overview of manual functions

The following finishing functions are manually available with a set of paper loaded in the upper tray of the post inserter of Folding Unit FD-503.

Combination of finishing options

Finishing functions

Folding Unit FD-503 only

Z-Fold, Tri-Fold-in, Tri-Fold-out, Double Parallel Fold, Gate-Fold, Half-Fold

2-Hole Punch, 3-Hole Punch (Inch area)

2-Hole Punch, 4-Hole Punch (Metric area)

Folding Unit FD-503 + Finisher FS-532

Functions available with Folding Unit FD-503 only, Corner Staple, 2 Position Staple

Folding Unit FD-503 + Saddle Stitcher SD-506

Functions available with Folding Unit FD-503 only, Fold & Staple

Folding Unit FD-503 + Saddle Stitcher SD-513

Functions available with Folding Unit FD-503 only, Fold & Staple

Folding Unit FD-503 + Finisher FS-532 + Saddle Stitcher SD-510

All functions available using the post inserter manually

Folding Unit FD-503 + Finisher FS-532 + Saddle Stitcher SD-513

All manual functions of Post Inserter

Button

Output

Multi-feed detection button

Multi-feed detection - ON

Multi-feed detection - OFF

Staple selection button

Corner Staple

2 Position Staple

Fold & Staple

Punch selection button

2-Hole Punch

3-Hole Punch / 4-Hole Punch

Fold selection button

Z-Fold

Tri-Fold-in

Half-Fold

Tri-Fold-out

Double Parallel

Gate

Tips

  • When manually using the functions available with Folding Unit FD-503, Finisher FS-532, Saddle Stitcher SD-510, or Saddle Stitcher SD-513, you can load paper only in the upper tray of the post inserter on Folding Unit FD-503.

  • Multi-feed detection is a feature that automatically stops the machine if more than one sheet is fed at a time. The post inserter is designed to operate this function. Some paper type, such as smooth surface paper, may activate this function even if a single sheet is fed, and may stop the machine as a result. Should this case occur frequently, press the Multi-feed detection button and light up the lower lamp, in order to turn the function OFF.

Manual function operation

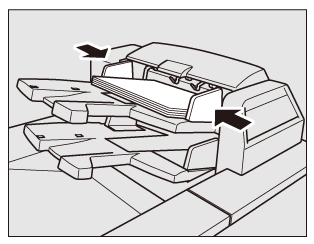

  1. Load paper into the upper tray of post inserter, and align the guide plates to paper.

    Function

    Positioning of paper

    Corner Staple / 2 Position Staple

    Position paper face up.

    Punch

    Position paper face up.

    Fold

    Position paper to be face up inside the fold.

    Fold&Staple

    Position paper to be face up inside the booklet.

  2. Select the desired mode.

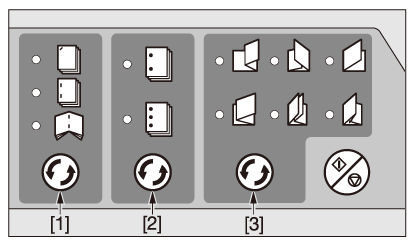

    [1]: Staple function selection button

    [2]: Punch function selection button

    [3]: Fold function selection button

    When selecting Corner Staple, 2 Position Staple, or Fold&Staple, press the staple function selection button to light up the indicator lamp of the target mode.

    When selecting 2 holes, 3 holes, or 4 holes for Punch, press the punch function selection button to light up the indicator lamp of the target mode.

    When selecting Fold (six types), press the fold function selection button to light up the indicator lamp of the target mode.

    • supplementary explanationPunch and Corner Staple / 2 Position Staple are compatible. To use them in combination, turn on the lamps of both functions.

    NOTICE

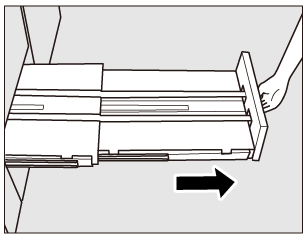

    • The folded and stapled paper is accommodated in the bundle exit tray. Draw out the bundle exit tray and turn up the stand under the tray to perform preparations for output.

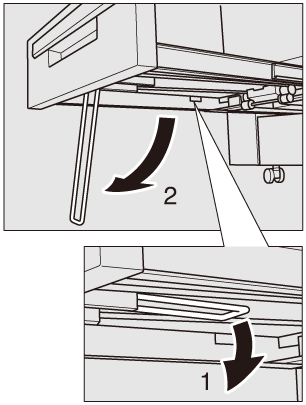

    Open the tray stand located under the tray when fully withdrawing it.

    If the tray is not fully withdrawn, the machine detects that the tray is filled up even with less number of finished sets than that specified in specifications.

    NOTICE

    • When using the bundle exit tray, be sure to fully pull out the tray. If the bundle exit tray is not pulled out fully, output is not accepted. When the bundle exit tray is pulled out fully, turn up the stand under the tray.

  3. Press Start/Stop.

    When double feeding is detected even if it is not performed and the machine stops, press the double-feeding detection function selection button to light up the indicator lamp in the lower side.

    • supplementary explanationTo stop processing, press Start/Stop again.

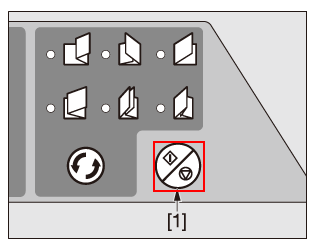

    [1]: Start/Stop button

    NOTICE

    • The trays have a limit in capacity. Be careful not to exceed the limit, otherwise unexpected trouble may be caused.

    • supplementary explanationThe suspension button is provided, but it does not function in manual mode.

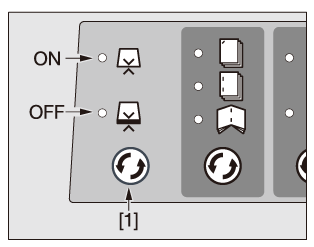

    [1]: Double-feeding detection function selection button

Loading a Booklet Original

To fold or fold & staple booklet-styled originals manually, arrange the originals in reverse order, as shown below.

Booklet-styled originals

Arrange in reverse order
