2-Sided Copy (Original Glass)
This section describes how to make 2-sided copies from the original scanned from the original glass.
preconditionThe Separate Scan mode is activated automatically.
preconditionSelect Direction according to the direction of the original loaded in the original glass.
preconditionThe machine is set to match the Bind Direction in Output Setting of copies to that of the original automatically.
Position the original on the original glass.
Open the ADF. Position the first page of the original face down, then close the ADF.
supplementary explanationWhen using the Book Copy, Image Centering or NoImage Area Erase function under Application, do not close the ADF.

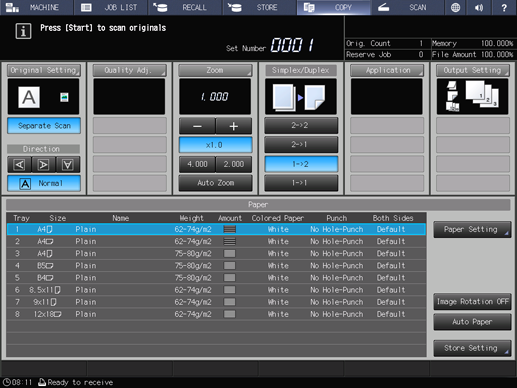

Press the COPY tab to display the COPY screen.
Select 1->2 copy mode.
Separate Scan is automatically selected.
supplementary explanationDo not press Reset on the control panel at this point, otherwise the machine is disabled for scanning the original positioned on the original glass.
Select Direction.
Select a Direction key provided under Original Setting according to the actual direction of the original.
supplementary explanationFor details about setting Direction, refer to Direction: Setting Direction of Original.
Specify the bind direction of 2-sided copies.

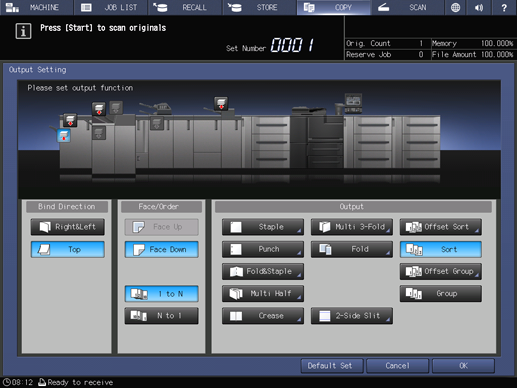

To display the Output Setting screen, press Output Setting on the COPY screen.
Press the desired bind direction key under Bind Direction.
To make top-bound 2-sided copies (printed upside down on back pages), select Top under Bind Direction.
Press OK.
supplementary explanationFor details about setting a bind direction of 2-sided copies, refer to Bind Direction: Setting Bind Direction for 2-Sided Copies.
Select additional copy conditions, as desired.
Press Start on the control panel.
The original of the front side for the output is scanned.
Replace the original on the original glass with that of the back side for the output, then press Start on the control panel.
When scanning is completed, press Separate Scan to deselect the key.
The message Press [Start] to copy is displayed.
supplementary explanationTo delete the scanned data without printing, or to suspend the printing job, press Stop on the control panel.
Press Start on the control panel.
All the data in memory will be output.
supplementary explanationPrinting does not start without returning to the COPY screen. Be sure to display the COPY screen.
