Emptying Scrap Box
When the scrap box of Multi Punch GP-501 becomes full, the following message will appear in the message area of the screen.
Multi puncher scrap box is full / Please empty scrap box

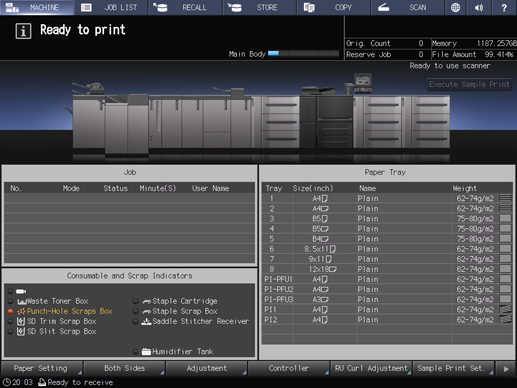

Also, the Punch-Hole Scraps Box indicator in the Consumable and Scrap Indicators area of the MACHINE screen lights up red, and the text color changes to yellow.
Follow the procedure below to empty the scrap box.
NOTICE
Once withdrawing the scrap box from the multi punch, be sure to empty it.
The machine resets the counter every time the scrap box is withdrawn, irrespective of whether or not the scrap box is empty.

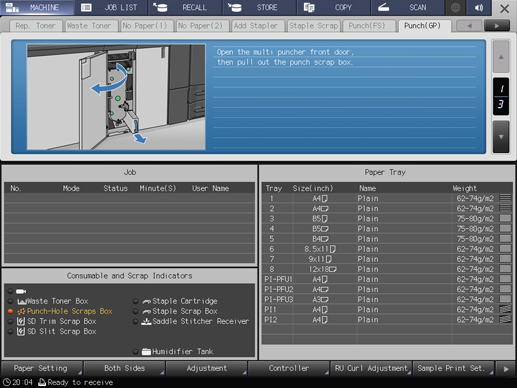

Press the Punch-Hole Scraps Box indicator in the Consumable and Scrap Indicators area of the MACHINE screen.
Perform the process while pressing updown to follow the steps.
Reference
For how to display the help message, refer to Displaying Help Message.
