Loading Cover Sheet in Post Inserter
Used in combination with Perfect Binder PB-503, cover sheets can be attached to output copies to make perfect-bound booklets.
Reference
Paper setting for cover sheets to be loaded in the post inserter tray is required. For details, refer to Setting Paper in a Paper Tray.
For details about perfect binding, refer to About Perfect Binder PB-503.
Covers for perfect binding | Perfect binding | |
|
| |

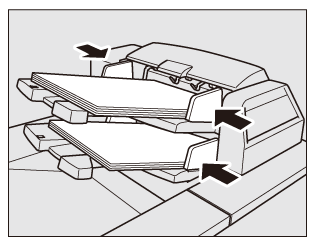

Load cover paper in the upper tray/lower tray of the post inserter.
NOTICE
Do not load more than 500 sheets (80 g/m2 / 21 lb Bond paper) in height for each of the upper tray and lower tray. Do not load above the limit line indicated on the guide plate.
Use the perfect binding function to attach a cover.
