Creating Half-Fold Booklet

Finisher FS-532 mounted with Saddle Stitcher SD-510 allows the machine to fold a paper and create a multiple page signature booklet folded and stapled at two positions (saddle stitched) in the center, using Booklet in combination.

Original

Output

Fold&Staple

Multi Half-Fold

Item

Description

Paper Size

A3 short edge feed, B4 short edge feed, A4 short edge feed, 12 18 short edge feed, 11 17 short edge feed, 8.5 14 short edge feed, 8.5 11 short edge feed), Custom (Widthwise 120 mm to 331 mm, Lengthwise 240 mm to 488 mm) / Widthwise 4.72" to 13.03", Lengthwise 9.45" to 19.21"

Paper weight

Body set: 50 g/m2 to 216 g/m2 / 14 lb Bond to 57 lb Bond Cover: 50 g/m2 to 300 g/m2 / 14 lb Bond to 81 lb Bond

Max. number of sheets

Multi Half-Fold: 5 sheets (50 g/m2 to 216 g/m2 / 14 lb Bond to 57 lb Bond), 1 sheet (217 g/m2 to 300 g/m2 / 58 lb Bond to 81 lb Bond)

Fold & Staple: 25 sheets (50 g/m2 to 61 g/m2 / 14 lb Bond to 17 lb Bond), 20 sheets (62 g/m2 to 80 g/m2 / 18 lb Bond to 21 lb Bond), 16 sheets (81 g/m2 to 91 g/m2 / 22 lb Bond to 24 lb Bond), 5 sheets (92 g/m2 to 216 g/m2 / 25 lb to 57 lb Bond)

Output Tray

Multi folder tray

Tray capacity

35 sets (1 to 5-sheet-folded in Multi Half-Fold)

35 sets (2 to 5-sheet-folded and stapled in Fold&Staple)

25 sets (6 to 10-sheet-folded and stapled in Fold&Staple)

15 sets (11 to 25-sheet-folded and stapled in Fold&Staple)

  • preconditionBooklet in Application is automatically set.

  • preconditionAuto Zoom is automatically set. Auto Paper cannot be used in combination.

  • preconditionSelect 1->2 or 2->2 copy mode.

  • preconditionOpen the paper delivery handle of the folder tray before operating an output using Fold&Staple or Multi Half mode. Use the paper delivery handle when taking out the output sheets.

  1. Position the original.

  2. Press the COPY tab to display the COPY screen.

  3. Press Output Setting.

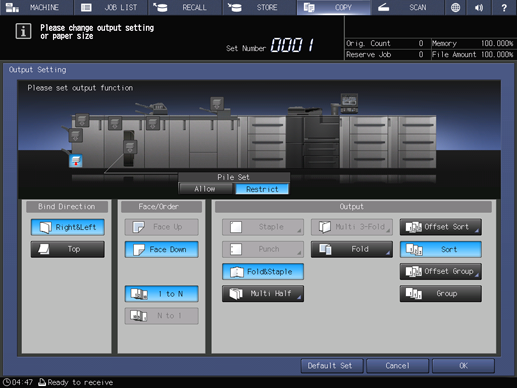

    The Output Setting screen is displayed.

  4. Select Fold&Staple or Multi Half under Output.

    The front image of the machine provided on the Output Setting screen shows that the folder tray is currently selected as an output tray.

  5. Press OK on the Output Setting screen.

    The screen returns to the COPY screen.

    The specified output setting icon is displayed under Output Setting on the COPY screen.

  6. Open the paper delivery handle of the folder tray.

Reference
